Plastic Agglomeration Machine

Name: Plastic Agglomeration Machine
Brand: MOOGE
Price: 6 USD

China Plastic Agglomeration Machine wholesale

Plastic Processed : HDPE, HDPE/PP, PE/PP, Lldpe, Plastic recycling machine

Condition : New

Output (kg/h) : 300 - 1000

Place of Origin : Jiangsu, China

Brand Name : MOOGE

Type : Recycling Granulator

Screw Design : Single

Voltage : Customized

Dimension(L*W*H) : 1530*750*1630 Mm

Power (kW) : 37KW

Weight : 500kg

Warranty : 1 Year

Showroom Location : Egypt, Canada, Turkey, Germany, Peru, Indonesia, Pakistan, India, Mexico, Russia, Colombia, Algeria, Japan, Malaysia

Applicable Industries : Plastic Recycling Machine

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support, Engineers available to service machinery overseas

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Canada, Turkey, United Kingdom, Germany, Viet Nam, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Japan, Malaysia, Colombia, Algeria, Nigeria

Certification : CE ISO9001

Power : 55KW

Capacity : 100-800kg/h

Material : PP/PE

Application : PP PE film

motor brand : siemens

inverter : ABB

rotary knife material : 9CrSi

colour : depend on the requirement of client

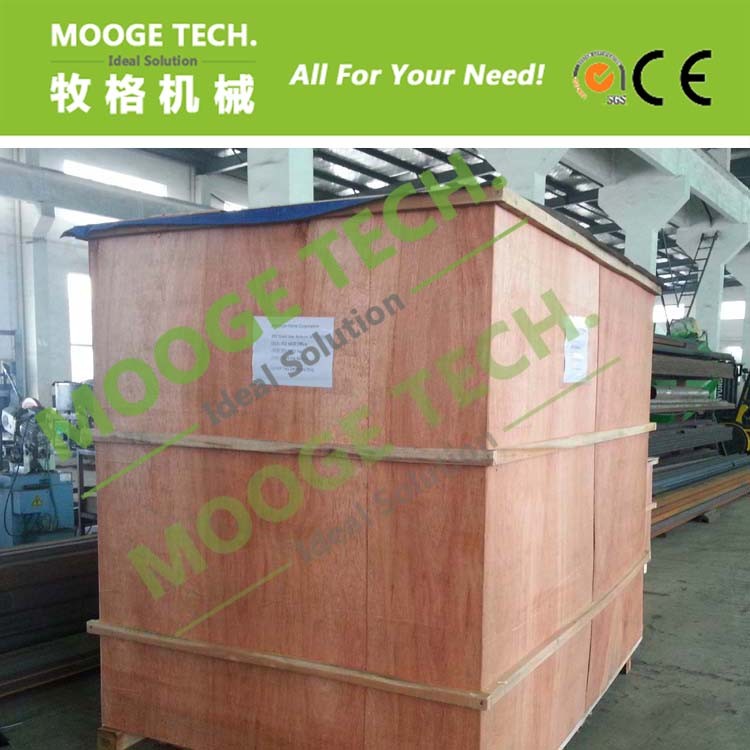

Packaging Details : the agglomerator will be wrapped with film to avoide the dust and dirty thing,
what's more,we will package the agglomerator with plywood case.

Port : shanghai port

Supply Ability : 200 Set/Sets per Year

Price : $6,000.00/sets 1-1 sets

Contact Now

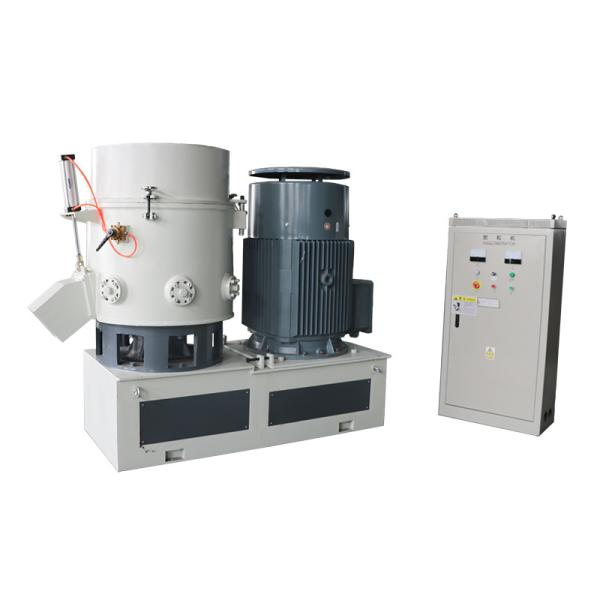

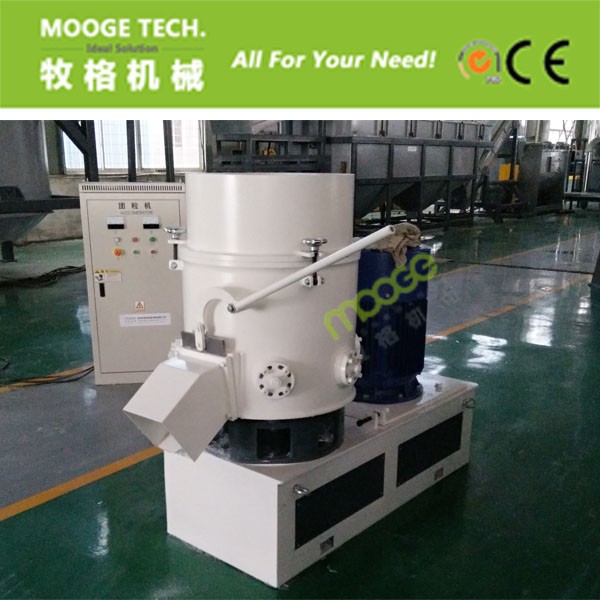

plastic agglomerator machine

The plastic agglomerator/densifier /compactor machine is used to agglomerate the plastic scrap such as wet or dry recycling plastic films, PET fiber, woven bags, PVC, LDPE, HDPE ,PS and other thermoplastics whose thickness is less than 2 mm into small granules & pellets directly. It is a necessary and economical machine for the PP PE plastic pelleting production line and the PP PE PVC pipe production line. it is also one necessary auxiliary machine for the plastic recycling production line.

Working Principle:

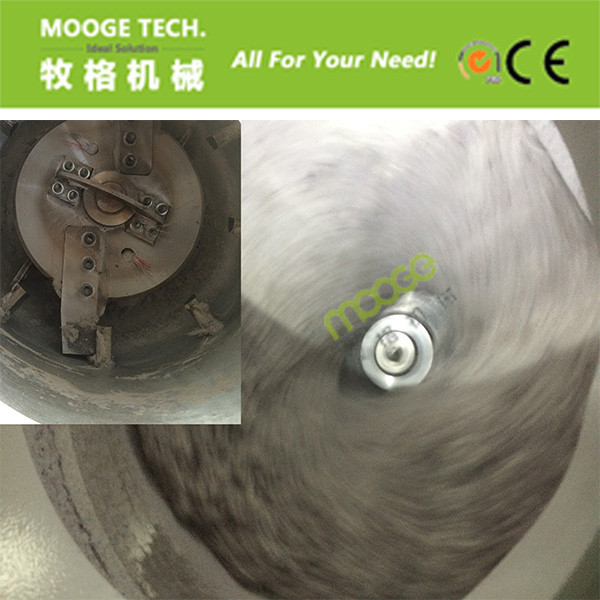

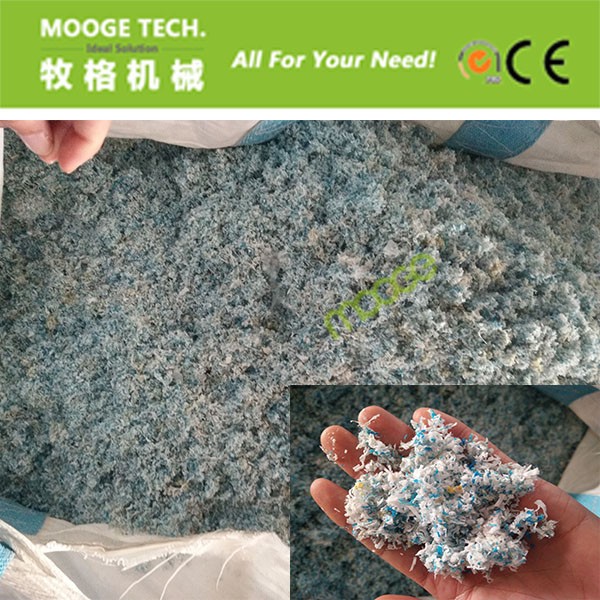

When the waste plastic is supplied into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.

Features:
1-Its working theory is different from ordinary extrusion pelletizer, no need electric heating, and can work whenever and wherever possible. It is jointly intelligent controlled by PLC& Computer, easy and stable for operations, and can save more electric power and manpower than common extrusion pelletizer.
2- strong design of double bearing for holding the main shaft,High performance blades,Water flushing automatically.

main parameter
model	GHX-100	GHX-300	GHX-400	GHX-500
Volume:L	100	300	400	500
effective voulme:L	75	225	340	375
speed:r/min	1050	950	850	800
capacity:kg/h	200	350	750	900
motor:kw	45	90	110	160
quantity of rotary blades	2	2	4	4
quantity of fixed blades	6	8	8	8
weight:kg	1100	1900	2000	3500
dimension:m	1.70.751.5	20.851.6	20.851.6	2.30.951.7
the material of body	stainless steel
blade material	9Crsi,SKD-11

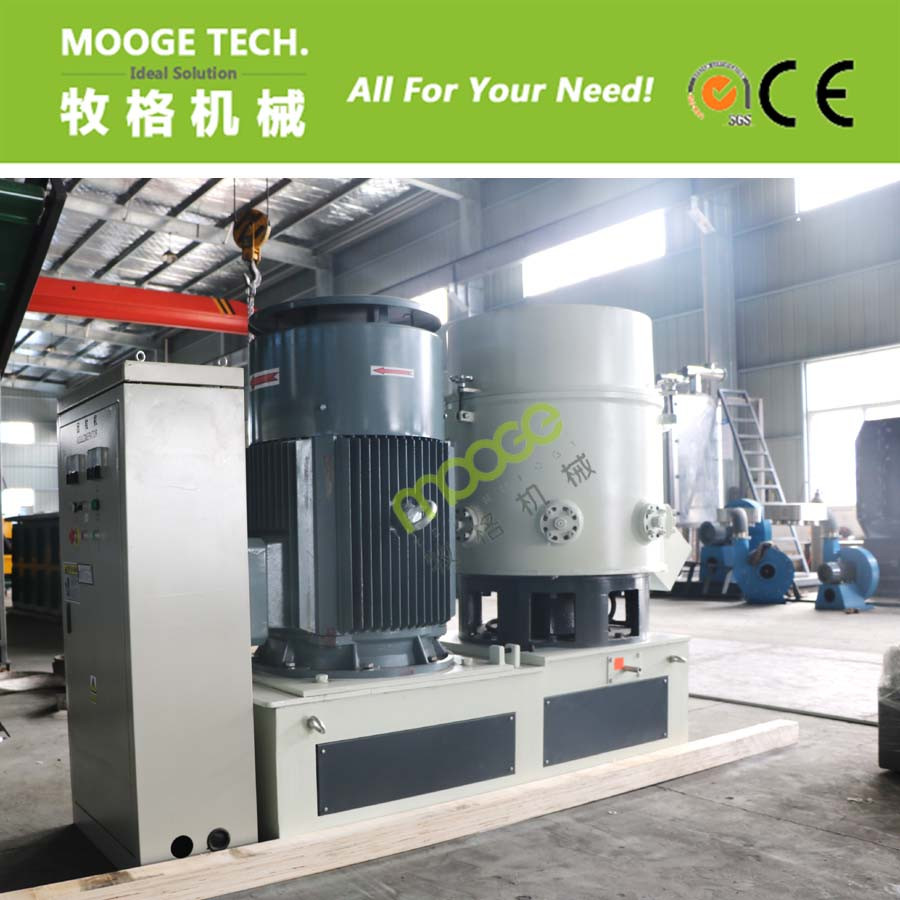

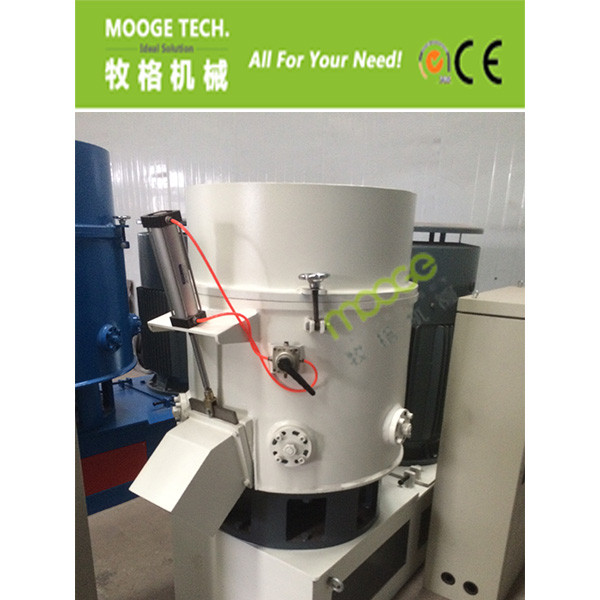

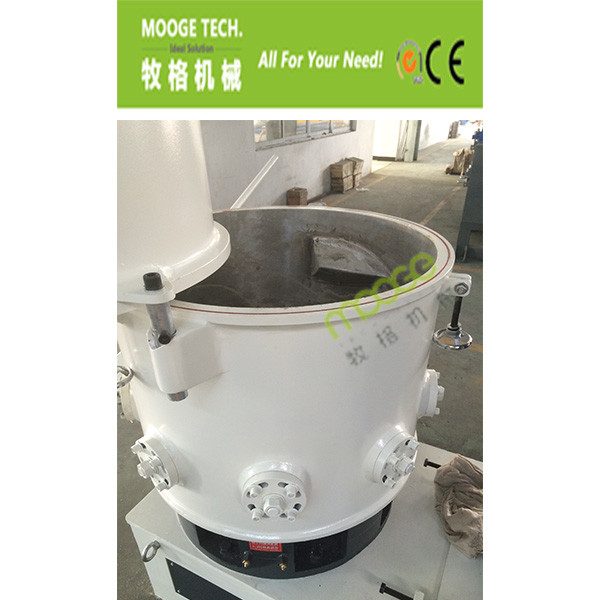

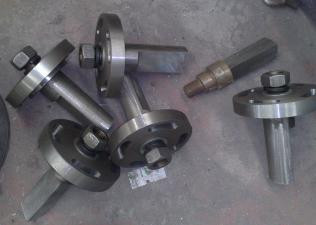

Detailed Images

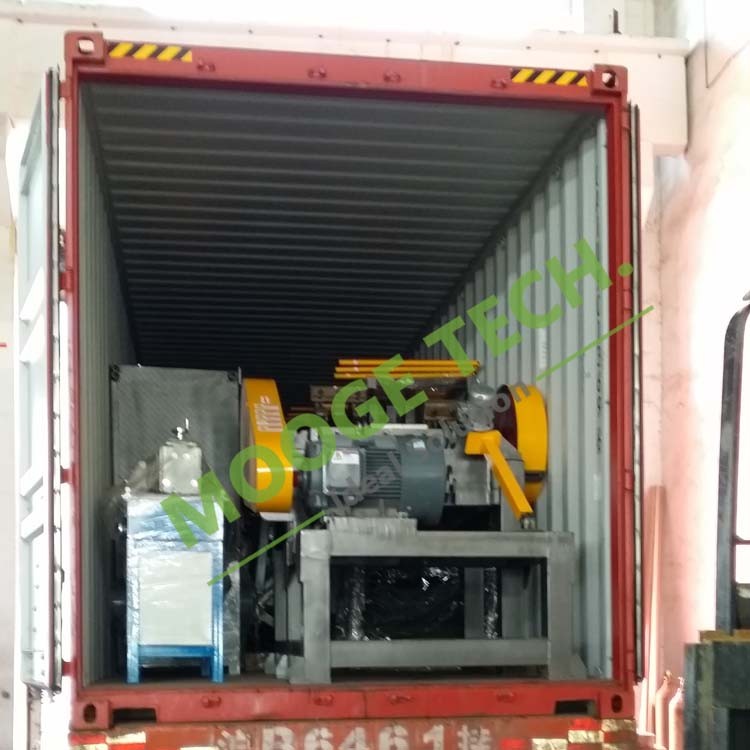

Packing & Delivery

FAQ

1- How to Choose proper Products you want?
Please tell us as detail as what you want?
What’s your raw material it is?
What’s the final products you want to produce?
What capacity you want it performance?

2- How to Control the quality?
We have technical, engineer team design the sample machinery before enter into market
Production QC team ensure the machine manufacturing quality
We will running every machine after finished before shipment
Optional choose by client running the machinery by material

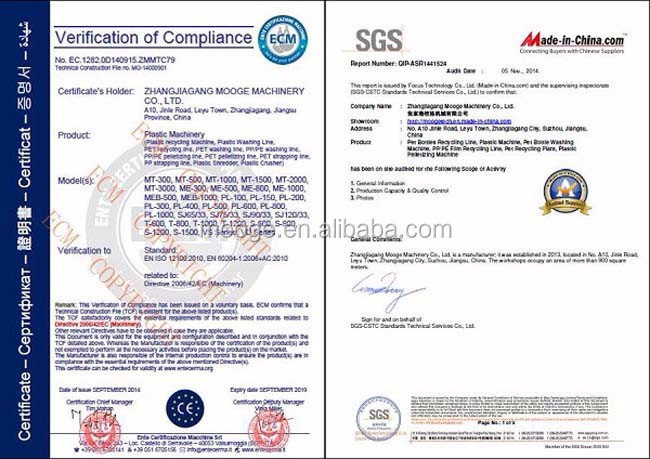

Certifications
